Ürün ayrıntıları:
|

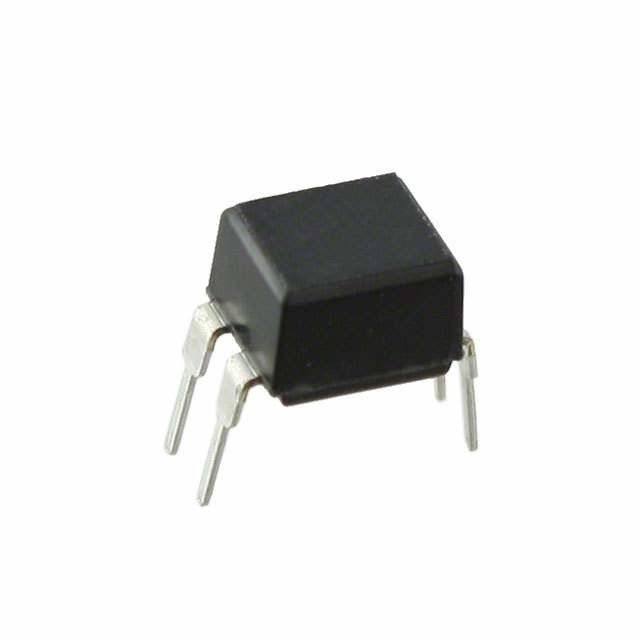

| Parça Numarası: | FOD617C300 | Üretici firma: | Fairchild/ON Yarı İletken |
|---|---|---|---|
| Tanım: | OPTOİZOLATÖR 5KV TRANSİSTÖR 4DIP | kategori: | Optoizolatörler - Transistör, Fotovoltaik Çıkış |
| Aile: | Optoizolatörler - Transistör, Fotovoltaik Çıkış |
| Part Status | Obsolete |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
