Ürün ayrıntıları:
|
| Parça Numarası: | 6N136F | Üretici firma: | Toshiba Yarı İletken ve Depolama |
|---|---|---|---|
| Tanım: | OPTOISO 2.5KV TRANS W/BASE 8DIP | kategori: | Optoizolatörler - Transistör, Fotovoltaik Çıkış |
| Aile: | Optoizolatörler - Transistör, Fotovoltaik Çıkış |
| Part Status | Active |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 200ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 15V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |

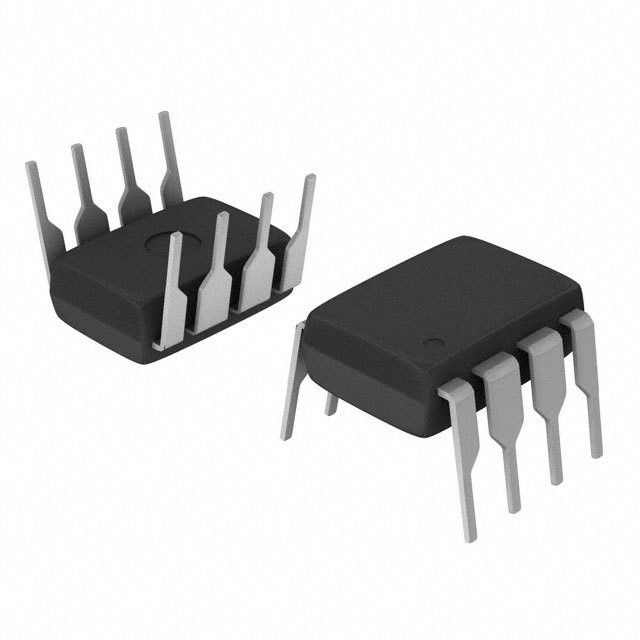

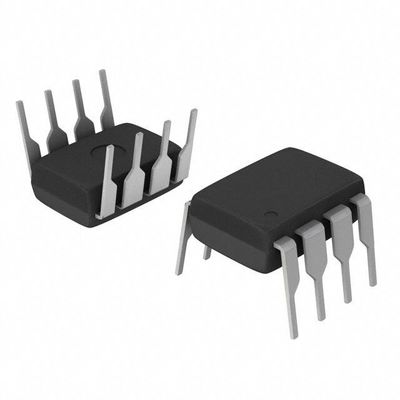

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
